Brand: OK
Model: OK-QD01
Price: CNY 5000 / 台
Min. Order: 1 台

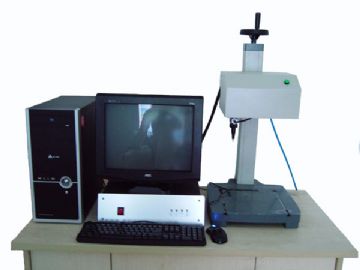

Standard pneumatic marking machine
pneumatic marking machine
marking machine
The basic principles of:

Marking the adoption of computer-controlled needle edited in accordance with the computer graphics character movement trajectory and at the same time marking the role of acupuncture in the compressed air for high-frequency under the impact of the workpiece, resulting in the formation of the workpiece on the characters and graphics.

The scope of application:

1, Auto Industry: The body, frame, chassis, beam, engine, connecting rod, cylinder, piston, cylinder liner, gear, water pump, spring steel, such as printing factory number, production number, production date, names, trademarks, etc. ;

2, mechanical industry: The range of machinery parts, machine tools, metal products, steel pipe, casing, coupling, roller, pump body valve, flange, fasteners marking;

3, instrumentation, electrical and mechanical equipment marking;

4, plastic products, leather products marking;

5, in aluminum, copper, stainless steel, PVC and other material signs (nameplate) on the print data, the factory number, production date, etc.;

6, marking dial.



Product main features:

Print the contents of: the number of Chinese and English characters, graphics

Font size: it can adjust its

Print Depth: 0.02-1mm (adjustable, with material relevant)

Print speed: 1500-2500 mm / min

Print materials: hardness HRC55 degrees Celsius in the metal and non-metallic

Print side: flat or bumpy surface of not more than 3mm

Power Supply: AC220V ± 10% 50Hz

Gas pressure: 0.3-0.7MPa

Air consumption: 3L / S

Power consumption: 300W (not including air compressor)

Repeatability: 0.02-0.05mm

Working environment: working environment of conventional

Function Description: loaded plate fixture (optional annex) could be easily etched semi-automatic plate, remove plate fixture (to be replaced by some simple corresponding fixture) can print machinery spare parts

Application range: Auto parts, machinery parts, machine tools, metal products, Pump valves, electrical and mechanical equipment, plastic products, plate (nameplate)

The main configurations: host marking machine, pneumatic marking controller, pneumatic marking driver (software CD-ROM)
