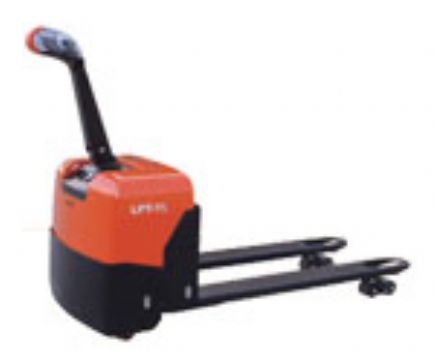

power pallet truck LPT15DC
noblift
transportation
The Lpt15 benefits from Noblelift’s design and engineering excellence.

Approved good acceleration enhances efficient pallet entry and exit to increase productivity. Non-polar electronic control provides variable speed acceleration which enhances pallet entry and exiting to improve productivity.

Smooth travel and lift with excellent controls reduces product damages and increases productivity.

A heavy-duty 24-volt electrical system provides good travel and lift speeds.

High quality hydraulic pump assures very little noise, maximum efficiency and durability.

Drive unit is equipped with an electromagnetic brake that is spring applied and electrically release. Brake is activated by the control handle position. Ergonomic designed control handle with buttons for raising, lowering and horning.

Lift limit switch operates at maximum lift height to shut off pump motor.

With curtis electronic controller from Europe.

The CURTIS electronic controller helps provide plenty of low end torque while increasing the motor and battery lift.

Excellent stability in operation even on the empty.

Conforms to EN1726 and EN1175-1

Controller:CURTIS

Hydraulic motor: Imported from Europe

1KG=2.2LB 1INCH=25.4MM

Identification
1.2 Model of manufacture WP-LPT15(DC)
1.3 Power supply(electric,diesel, petrol,gas,mains electric) electric
1.4 Type of operation(hand,pedestrian,stand on,rider seated, order picker) pedestrian
1.5 Capacity /rated load Q Kg 1500
1.6 Load center distance C mm
600
1.8 Load distance X mm 963 1054
1.9 Wheelbase y mm 1217 1310
Weights
2.1 Weight(including battery) Kg 286
2.2 Axle loadings laden drive end/load end Kg 760/1026 674/1112
2.3 Axle loadings unladen drive end/load end Kg 222/64 226/60
Wheels,
Chassis
3.1 Tyres(rubber, Vulkollan, pneumatic, polyurethane) polyurethane
3.2 Tyre size drive end mm Φ252x89
3.3 Tyre size load end mm Φ84x70/Φ84x93 Φ74x70/Φ74x93
3.4 Castor wheels(dimensions) Φ100x40
3.5 Wheels, number(x=drive wheel)drive end/load end 1x -2/4 or 1x -2/2
3.6 Track width(front) drive end b10mm 490
3.7 Track width(rear) load end b11mm 360 490
Basic Dimensions
4.4 Lift height h3 mm 120
4.9 Tiller height in neutrality position h14mm

1235
4.15 Fork height lowered h13mm 85 75
4.19 Overall length l1 mm 1590 1660
4.20 Length to front face of fork l2 mm 440
4.21 Overall width b1 mm 700
4.22 Fork dimensions s/e/lmm 47/160/1150 47/160/1220
4.25 Overall fork width b5 mm 520 650
4.32 Floor clearance, center of wheelbase m2 mm 34 24
4.34 Working aisle with 800x1200 pallet lengthwise Ast mm 1944 1976
4.35 turning radius Wa mm 1480 1550
Performance Data
5.1 Travel Speed laden/unladen km/h 5.0/5.2
5.2 Lifting speed laden/unladen mm/s 27/35
5.3 Lowering speed laden/unladen mm/s 42/27
5.8 Gradeability laden/unladen % 5/8
5.10 Brakes Electric-magnetic
E-Motor
6.1 Drive motor kw 1.0
6.2 Lifting motor kw 0.8
6.3 Battery acc. To BS, no 1) no
6.4 Battery voltage, norminal capacity K5 1) V/Ah 2x12/80
6.5 Battery weight +/-5% Kg 48
Battery dimensions l/w/h 1) mm 260/170/230
Others
8.1 Type of drive control MOSFET Control
8.4 Sound level, at driver’s ears dB(A) <70
Turning angle . 205
*)Load section lifted/lowered +55mm
**)Diagonal according to VDI+204mm
